Electric Valve Failsafes

Emergency Electric Valve Actuator Power Supply

1620ESv2 Solar Failsafe and

Controller

1620ESv2 Series Failsafe

Specifications:

Timed or Instant Power Transfer Selection Actuator Power Status LED Controller Power Indicator LED Remote Test Switch UPS RESET Heater / Fan Ready Totally Automatic Switch-Mode Maintenance Free Operation Battery Fuse Protection Normal / UPS

Optional Features:

Single Actuator Failsafe Dual Actuator Failsafe Multiple Actuators Control Failsafe Cooling Fan Heater and Thermostat Oversized Battery Indicator Lights 120 Vac single Pahse 60 Hz. 240 Vac single Phase 50 Hz. All types of NEMA Enclosures

Model 1620ESv2 Failsafe

The Resurge Failsafe Model 1620ESv2 Electric Actuator "Failsafe" Controller, has been developed to operate any size single phase 120 Vac, 60 Hz, and 240 Vac 50Hz Permanent Split Capacitor valve actuator as a standby power supply, activated only upon main power supply failure. The valve actuator is connected to the 120V AC line in normal fashion through standard controls. Upon power failure, the Model 1620ESv2 standby power unit senses lack of voltage and automatically sends the valve to the "Failsafe" position. The end of travel limit switches, located in the valve actuator, when reached, will then turn OFF the "Failsafe" module. Upon power resumption, the valve will return to the last position called for by the controller. The Resurge Failsafe 1620ESv2 is sized to the locked rotor amperage draw of the actuator, and is designed to sit in an ever ready status for up to five years with out battery replacement.

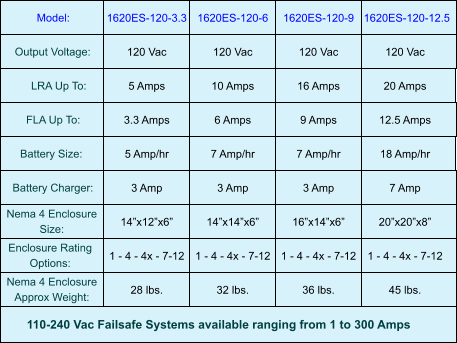

1620ESv2 Series Failsafe Selection Chart

Resurge Failsafe offers the most reliable Failsafe system in the industry, powerful, small size and yet the most economical system on the market. Choose from different models that supply currents from 0.1 to 100 Amps. Standard working voltages are 120 Vac single phase 60Hz. or 240 Vac single phase 50Hz. Contact us for additional information or pricing on this or any of our other fine products.
This site was last updated on: April 28, 2024
Model: 1620ES-120-3.3 1620ES-120-6 1620ES-120-9 1620ES-120-12.5 Output Voltage: 120 Vac 120 Vac 120 Vac 120 Vac LRA Up To: 5 Amps 10 Amps 16 Amps 20 Amps FLA Up To: 3.3 Amps 6 Amps 9 Amps 12.5 Amps Battery Size: 5 Amp/hr 7 Amp/hr 7 Amp/hr 18 Amp/hr Battery Charger: 3 Amp 3 Amp 3 Amp 7 Amp Nema 4 Enclosure Size: 14”x12”x6” 14”x14”x6” 16”x14”x6” 20”x20”x8” Enclosure Rating Options: 1 - 4 - 4x - 7-12 1 - 4 - 4x - 7-12 1 - 4 - 4x - 7-12 1 - 4 - 4x - 7-12 Nema 4 Enclosure Approx Weight: 28 lbs. 32 lbs. 36 lbs. 45 lbs. 110-240 Vac Failsafe Systems available ranging from 1 to 300 Amps
Contact Us for Available Models and Pricing Contact Us....
